52-TA Ch= 74
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200495

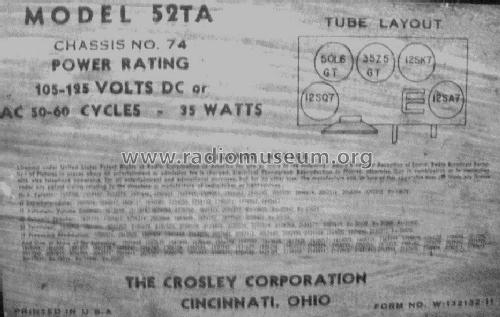

Typenschild

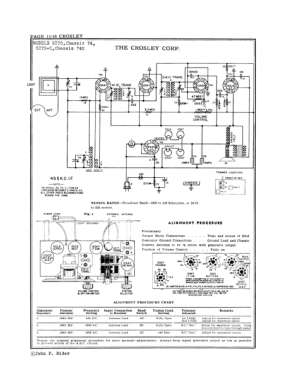

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 52-TA Ch= 74 - Crosley Radio Corp.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13.25 x 7.5 x 6.5 inch / 337 x 191 x 165 mm
- Mentioned in

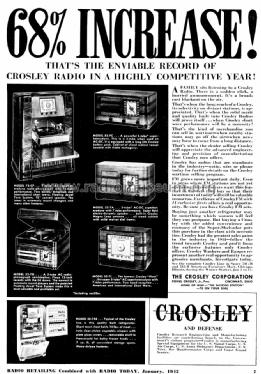

- Radio Retailing (Radio & Television R.) (January 1942.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 1807 models, 1050 with images and 1301 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)
Collections
The model 52-TA is part of the collections of the following members.
Forum contributions about this model: Crosley Radio Corp.;: 52-TA Ch= 74
Threads: 1 | Posts: 2
I'm a new member and just received a Crosley Model 52TA (Chassis 74) to repair. Having a difficult time locating a schematic for this radio.
Can anyone point me in the right direction on how to locate a schematic, or even better, can someone provide me the schematic?
Thanks in advance
Ken Ballard
Maryland, USA
Kenneth Ballard, 29.Jul.20
