52-TL 86

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36697

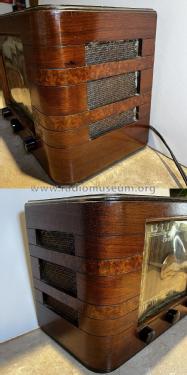

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6K6GT 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 52-TL 86 - Crosley Radio Corp.;

• Shape
• Tablemodel, with any shape - general.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• Radio Retailing (Radio & Television R.) (January 1942.)
