• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36717

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6D6 6D6 6B7 43 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz; 1 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

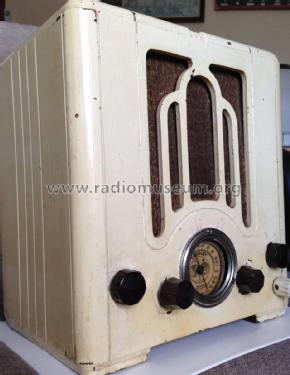

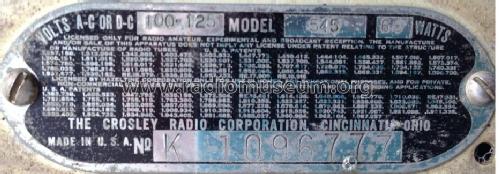

• Model: 545-AD "Privateer" Ch= 545 - Crosley Radio Corp.;

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Cathedral & Tombstone Radios (page 84.)

• Literature/Schematics (1)
• Table Top Radios Vol. 4 Stein 2003 (page 68.)
