- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36758
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 1 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

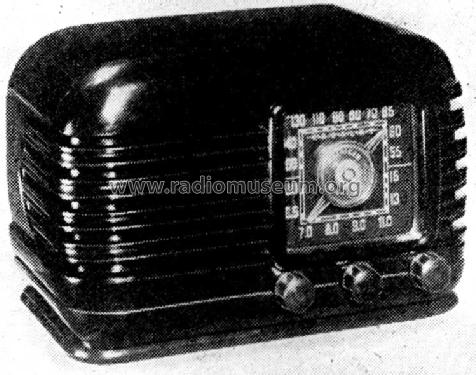

- Model: 56TA - Crosley Radio Corp.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 11.75 x 7.5 x 6.1875 inch / 298 x 191 x 157 mm
- Notes
- Color brown. Same chassis in 56TAL, 56TWL, 56TCL.
- Price in first year of sale
- 19.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (March 1946 page 38.)
