- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36851

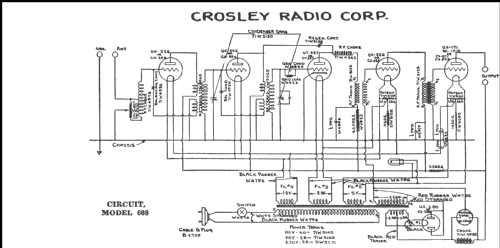

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: 608 - Crosley Radio Corp.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Volume adjustment by attenuating the antenna signal.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)
- -- Schematic (La Riparazione degli Apparecchi Radio, Delforno - Colciago, Italy 1941)
- Literature/Schematics (2)
- Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)
