• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36957

• Number of Tubes
• 7

• Valves / Tubes
• 6A8GT 6SK7GT 6P5GT 6SF5GT 25L6GT 25Z6 25Z6

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

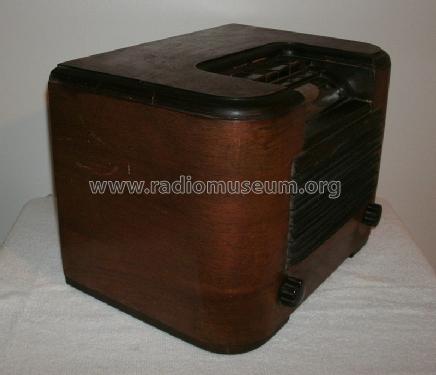

• Model: 719D - Crosley Radio Corp.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 12 x 9 x 8.375 inch / 305 x 229 x 213 mm

• Notes

• Please look up common information here for this season.

• Price in first year of sale
• 24.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (3)
• Crosley Folder No. 2451B, Season 1939/40.

• Literature/Schematics (4)
• Table Top Radios Vol. 4 Stein 2003 (page 70.)

• Other Models

• Here you find 1791 models, 1048 with images and 1282 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
