Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1948

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
37019

Schematics

9-102 ; Crosley Radio Corp.; (ID = 93678) Radio — Crosley Radio Corp.; 9-102 (3)
Beitman

9-102 ; Crosley Radio Corp.; (ID = 93679) Radio — Crosley Radio Corp.; 9-102 (3)
Beitman

9-102 ; Crosley Radio Corp.; (ID = 326873) Radio — Crosley Radio Corp.; 9-102 (3)

9-102 ; Crosley Radio Corp.; (ID = 326874) Radio — Crosley Radio Corp.; 9-102 (3)

9-102 ; Crosley Radio Corp.; (ID = 326875) Radio — Crosley Radio Corp.; 9-102 (3)

9-102 ; Crosley Radio Corp.; (ID = 1428713) Radio — Crosley Radio Corp.; 9-102 (3)

9-102 ; Crosley Radio Corp.; (ID = 1428715) Radio — Crosley Radio Corp.; 9-102 (3)

9-102 ; Crosley Radio Corp.; (ID = 1428723) Radio — Crosley Radio Corp.; 9-102 (3)

9-102 ; Crosley Radio Corp.; (ID = 1428726) Radio — Crosley Radio Corp.; 9-102 (3)

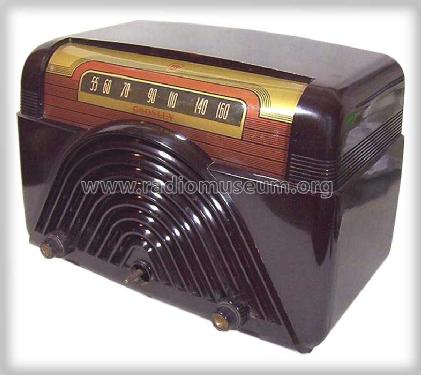

9-102 ; Crosley Radio Corp.; (ID = 241028) Radio — Crosley Radio Corp.; 9-102 (2)
Ebay Nr. 260011499439 Bild bearbeitet.

9-102 ; Crosley Radio Corp.; (ID = 241030) Radio — Crosley Radio Corp.; 9-102 (2)
Ebay Nr. 260011499439 Bild bearbeitet.

9-102 ; Crosley Radio Corp.; (ID = 241029) Radio — Crosley Radio Corp.; 9-102 (2)
Ebay Nr. 260011499439 Bild bearbeitet.

9-102 ; Crosley Radio Corp.; (ID = 93386) Radio — Crosley Radio Corp.; 9-102 (2)

9-102 ; Crosley Radio Corp.; (ID = 241031) Radio — Crosley Radio Corp.; 9-102 (2)
Ebay Nr. 260011499439 Bild bearbeitet.

9-102 ; Crosley Radio Corp.; (ID = 1428709) Radio — Crosley Radio Corp.; 9-102 (2)

9-102 ; Crosley Radio Corp.; (ID = 2884530) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

9-102 ; Crosley Radio Corp.; (ID = 2884531) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

9-102 ; Crosley Radio Corp.; (ID = 2884532) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

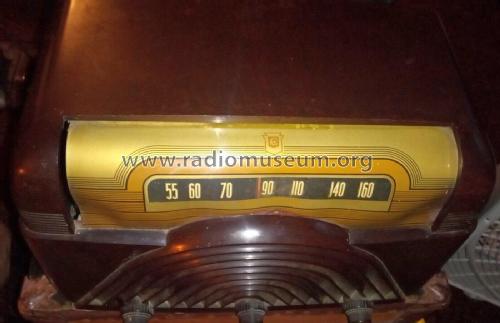

9-102 ; Crosley Radio Corp.; (ID = 2884533) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

9-102 ; Crosley Radio Corp.; (ID = 2884534) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

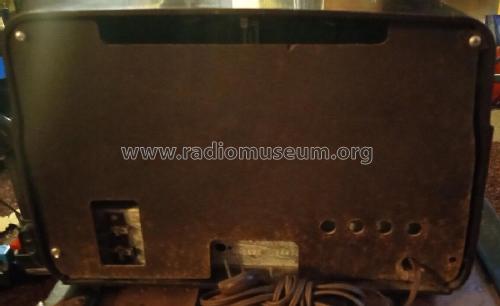

9-102 ; Crosley Radio Corp.; (ID = 2884535) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

9-102 ; Crosley Radio Corp.; (ID = 2884536) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

9-102 ; Crosley Radio Corp.; (ID = 2884537) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:125667095511

9-102 ; Crosley Radio Corp.; (ID = 2884590) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:364107966986

9-102 ; Crosley Radio Corp.; (ID = 2884591) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:364107966986

9-102 ; Crosley Radio Corp.; (ID = 2884592) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:364107966986

9-102 ; Crosley Radio Corp.; (ID = 2884593) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:364107966986

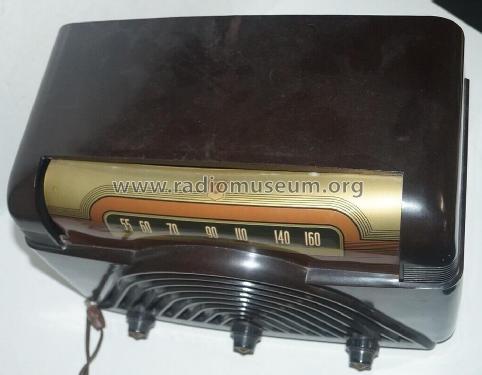

9-102 ; Crosley Radio Corp.; (ID = 2884594) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:364107966986

9-102 ; Crosley Radio Corp.; (ID = 2884595) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:364107966986

9-102 ; Crosley Radio Corp.; (ID = 2884596) Radio — Crosley Radio Corp.; 9-102 (2)
eBay item number:364107966986

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
7A7 7Q7 7A7 7B6 7B5 5AZ4

Main principle
Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 105-125 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

Power out
2.5 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 9-102 - Crosley Radio Corp.;

Shape
Tablemodel, with any shape - general.

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 18 = 1949 and before

Mentioned in
The Radio Collector's Directory and Price Guide 1921 - 1965

Literature/Schematics (1)
Beitman Radio Diagrams, Vol. 09, 1949

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (4820-4 Set 50 Folder 4)

Other Models
Here you find 1791 models, 1048 with images and 1282 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)

Collections | Museums | Literature
