9-205M

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1949

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
37040

Schematics

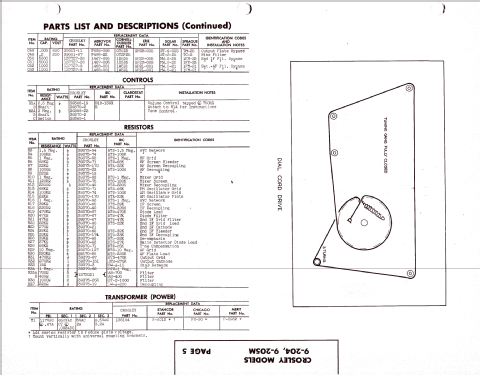

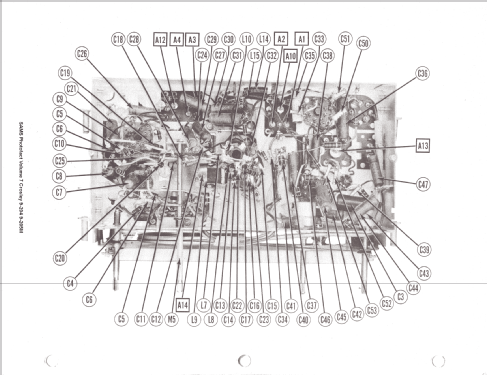

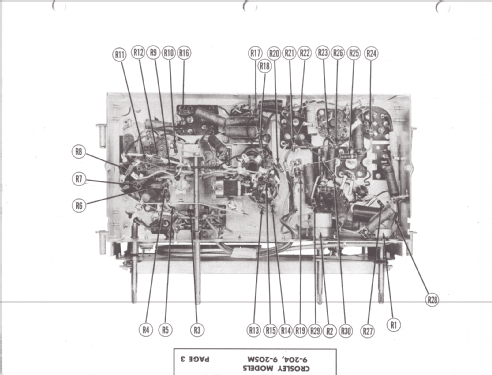

9-205M ; Crosley Radio Corp.; (ID = 280983) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 280985) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1301640) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 280986) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 280987) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 280988) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 280989) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 280990) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 280991) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282302) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282303) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282304) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282305) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282306) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282307) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282309) Radio — Crosley Radio Corp.; 9-205M (3)

9-205M ; Crosley Radio Corp.; (ID = 1282245) Radio — Crosley Radio Corp.; 9-205M (2)
SAMS Photofact Volume 7 Folder 4911-5

9-205M ; Crosley Radio Corp.; (ID = 280975) Radio — Crosley Radio Corp.; 9-205M (2)

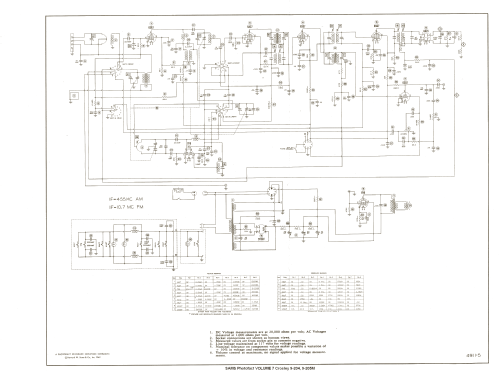

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
9

Valves / Tubes
6SG7 7F8 6AC7 6SG7 6SG7 6AL5 6SQ7 6SQ7 6V6GT 6V6GT 5Y3GT

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 105 - 125 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
7 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: 9-205M - Crosley Radio Corp.;

Shape
Console, Lowboy (legs < 50 %).

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 19 = 1949 and before

Mentioned in
The Radio Collector's Directory and Price Guide 1921 - 1965

Other Models
Here you find 1791 models, 1048 with images and 1282 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
