9-407

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1949

Category
Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

Radiomuseum.org ID
129361

Schematics

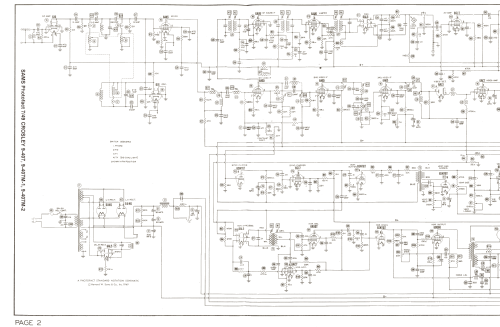

9-407 ; Crosley Radio Corp.; (ID = 1334367) TV Radio — Crosley Radio Corp.; 9-407 (3)

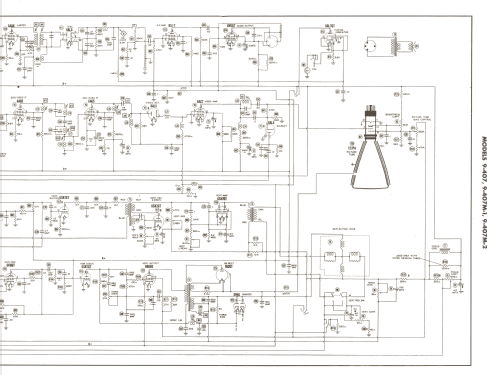

9-407 ; Crosley Radio Corp.; (ID = 1334370) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334372) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334373) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334376) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334377) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334380) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334381) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334382) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334383) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334384) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334385) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334386) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334387) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334388) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334389) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334390) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 1334426) TV Radio — Crosley Radio Corp.; 9-407 (3)

9-407 ; Crosley Radio Corp.; (ID = 694459) TV Radio — Crosley Radio Corp.; 9-407 (2)
Ebay auction 170412802051

9-407 ; Crosley Radio Corp.; (ID = 694456) TV Radio — Crosley Radio Corp.; 9-407 (2)
Ebay auction 170412802051

9-407 ; Crosley Radio Corp.; (ID = 694457) TV Radio — Crosley Radio Corp.; 9-407 (2)
Ebay auction 170412802051

9-407 ; Crosley Radio Corp.; (ID = 694458) TV Radio — Crosley Radio Corp.; 9-407 (2)
Ebay auction 170412802051

9-407 ; Crosley Radio Corp.; (ID = 694460) TV Radio — Crosley Radio Corp.; 9-407 (2)
Ebay auction 170412802051

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
28

Valves / Tubes
6J6 6AK5 6J6 6AG5 6AG5 6AG5 6AL5 6AC7 6AU6 6AU6 6AL5 6AL7GT 6SJ7 6V6GT 6SN7GT 6SJ7 6SN7GT 6SN7GT 6AL5 6AC7 6K6GT 6BG6G 5V4G 1B3GT 6AL5 5U4G 5U4G 12JP4

Main principle
Superheterodyne (common)

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
Permanent or electro-dynamic (moving coil), system not known yet.

Material
Wooden case

from Radiomuseum.org
Model: 9-407 - Crosley Radio Corp.;

Shape
Tablemodel, with any shape - general.

Notes
12" round CRT b/w TV with phono-in, US standard VHF band channels 1-13 & FM radio crank operated continuous tuning.

Source of data
-- Collector info (Sammler)

Mentioned in
Photofact Folder, Howard W. SAMS (Vol.7/49 4914-6 Set #66 Folder 6)

Author
Model page created by a member from A. See "Data change" for further contributors.
