- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1950 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 254065

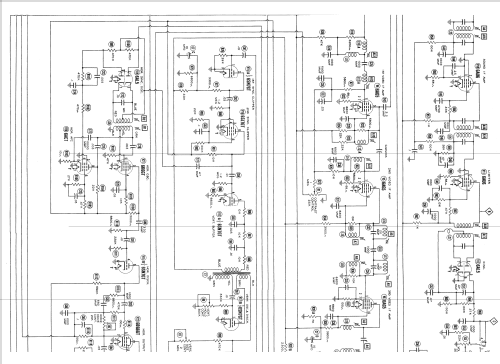

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 33
- Valves / Tubes
- 6BA6 6BE6 6BA6 6SQ7GT 6V6GT 5Y3GT 6J6 6AK5 6AB4 or 6J6 6AG5 6AG5 6AG5 6AL5 6AC7 6AU6 6AU6 6AL5 6SJ7GT 6V6GT 6SN7GT 6SJ7GT 6SN7GT 6AL5 6AC7 6K6GT 6BG6G 5V4G 5U4G 5U4G 12QP4 or 12KP4 or 12TP4 or 12LP4
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9-419M1 - Crosley Radio Corp.;
- Shape
- Console with any shape - in general
- Notes
-
AM-FM-TV-Phono-Receiver. Tuning ranges AM 540 - 1600 Kc, TV-FM 44 - 216 Mc (continuous tuning). Record changer General Instrument 700F.
2 speakers: 9.38" and 4.75" x 7".
CAUTION: there are two different versions of Sam's Set 91A. The model in question may or may not appear in one or the other Folder!
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 91A Folder 4 1950)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-50, Set 94, Folder 3)
