Bandbox 601 Console Cabinet
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294702

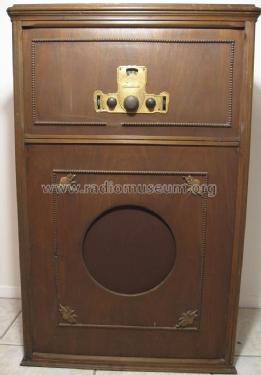

Musicone speaker is not installed
Musicone speaker is not installed.
- Number of Tubes
- 6
- Main principle
- TRF without regeneration; 2 AF stage(s); Neutrodyne
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 35 & 127 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic. / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Bandbox 601 [Console Cabinet] - Crosley Radio Corp.;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 23 x 37.5 x 14 inch / 584 x 953 x 356 mm
- Notes
-
Price includes $55 for radio, $35 for cabinet, $10 for 12 inch Musicone speaker.
- Price in first year of sale
- 100.00 USD
- Author
- Model page created by Jay Kinnard. See "Data change" for further contributors.
