635M Buccaneer
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191587
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles 110 volts or 25 c. 110 v or 25 c. 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

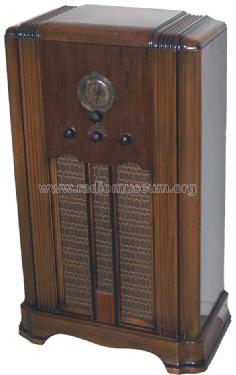

- Model: 635M Buccaneer - Crosley Radio Corp.;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 20.75 x 36.375 x 11.25 inch / 527 x 924 x 286 mm
- Notes
- For the Buccaneer 635M there are 3 different transformers possible: 60 cycle 110 volt, 25 cycles 110 volt and 25 cycles 220 volt. Tuning ranges are 540 to 1700 kHz broadcast, 1.7 MHz to 5.2 MHz and 5.4 to 15.3 MHz. AVC (Automatic Volume Control), Tone Control, Full Vision Illuminated Airplane Type Dial.
See details about season 1935/36 here. For Crosley and many collectors it is 1936 models, but fact is season 1935/36.
- Price in first year of sale
- 54.50 $
- Source of data
- Pre-War Consoles
- Literature/Schematics (2)
- Rider's Perpetual, Volume 6 = 1935 and before (Crosley 6-19 (schematic) and 6-20 (Alignment, Chassis parts), date October 1935)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
