- Land
- USA
- Hersteller / Marke
- Crosley Radio Corp.; Cincinnati (OH)
- Jahr
- 1941/1942
- Kategorie
- Rundfunkempfänger (Radio - oder Tuner nach WW2)
- Radiomuseum.org ID
- 36443
Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.
- Anzahl Röhren
- 6
- Hauptprinzip
- Superhet allgemein; ZF/IF 455 kHz; 2 NF-Stufe(n)
- Anzahl Kreise
- 6 Kreis(e) AM
- Wellenbereiche
- Mittelwelle und Kurzwelle.
- Spezialitäten
- Plattenschneidgerät
- Betriebsart / Volt
- Wechselstromspeisung / 60 cycles, 117 Volt
- Lautsprecher
- Dynamischer LS, mit Erregerspule (elektrodynamisch)
- Belastbarkeit / Leistung
- 3 W (max./spitze)
- Material
- Gerät mit Holzgehäuse
- von Radiomuseum.org
- Modell: C33-CA - Crosley Radio Corp.;
- Form
- Tischgerät, Truhenform, meist mit Deckel (NICHT Schrägpult).
- Bemerkung
-

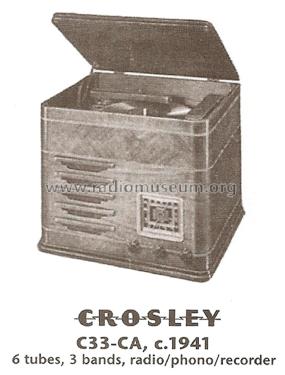

The Crosley C33-CA is an AC operated 6 tube combination phonograph player/recorder and BC/SW receiver. Can record from either the radio or from an external microphone. Has built-in loop antenna.
Note: Both the Crosley brocure and the Stein Table Top Radios Volume 4 indicate that this is a 3 band model, however the schematics in both the Crosley service data and the Riders data show a band switch with just 2 positions. It is possible that the BC band may extend into the police band (Which would explain the difference), however we don't yet have a closeup view of the dial, nor any literature detailing the frequency tuning range of the bands.
- Datenherkunft extern
- Ernst Erb
- Literatur/Schema (1)
- Rider's Perpetual, Volume 14 = covering up to late 1942 (C=1944) (Pages 14-9, 14-10)
- Literatur/Schema (2)
- Crosley Radio Service Manual: 1943 Sets and Earlier (Pages 66, 67)
- Literatur/Schema (3)
- Crosley 1942 brocure for Season 1941/42.
- Literatur/Schema (4)
- Table Top Radios Vol. 4 Stein 2003 (page 72.)
