• Country
• Canada

• Manufacturer / Brand
• Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180676

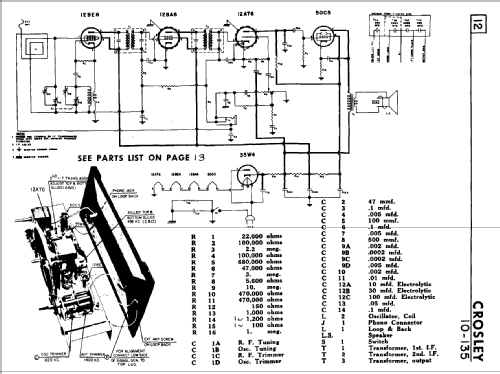

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 or 6BJ6 12AV6 or 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 10-135 - Crosley Radio and Television

• Notes
• Canada Supplements. Built in loop antenna.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements Crosley page 12

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
