• Country
• Canada

• Manufacturer / Brand
• Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180694

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

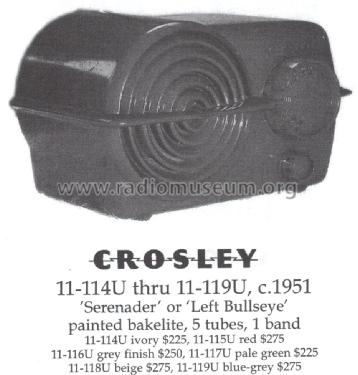

• Model: Serenader 11-118U - Crosley Radio and Television

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 234 x 145 x 146 mm / 9.2 x 5.7 x 5.7 inch

• Notes

• Canada Supplements. Built in loop antenna.

  Colours and material:
  Painted bakelite, beige.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements Crosley page 18

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 51.)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
