Book Radio JM-8
Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario
- Country
- Canada
- Manufacturer / Brand
- Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 270261
- Number of Tubes
- 3
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / Mercury 4 & 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.1 W (0.15 W max.)
- Material
- Various materials
- from Radiomuseum.org
- Model: Book Radio JM-8 - Crosley Radio and Television
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 175 x 50 x 110 mm / 6.9 x 2 x 4.3 inch
- Notes
-

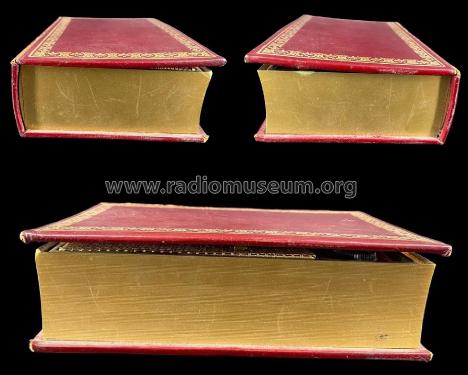

Radio a valvole subminiatura e transistors a forma di libro, alimentata con batteria al mercurio da 4 volt per il filamento e pila da 45 v per l'anodica. Involucro nin plastica ricoperto di pelle.
Licensed by Canadian Radio Patents Limited 1941-1955 inclusive.
- Author
- Model page created by Mauro Emilio Gino Bellini. See "Data change" for further contributors.
