• Country
• Canada

• Manufacturer / Brand
• Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 227524

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AV6 12BA6 12BE6 35W4 50C5

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: GC-5 - Crosley Radio and Television

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9 x 6 x 6 inch / 229 x 152 x 152 mm

• Notes

• Color = mahogany (MY).

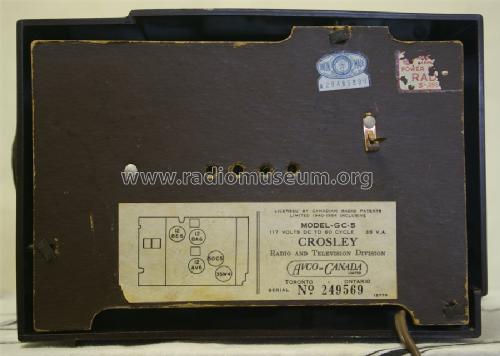

  The label displays a different (extended) licensing (1940 to 1954)

• Net weight (2.2 lb = 1 kg)
• 4 lb 4 oz (4.25 lb) / 1.930 kg

• Author
• Model page created by Bruce Morgenstern. See "Data change" for further contributors.
