J-21LPKMU Ch= 477

• Country
• Canada

• Manufacturer / Brand
• Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 298279

• Picture
• Schematics

Previous Next

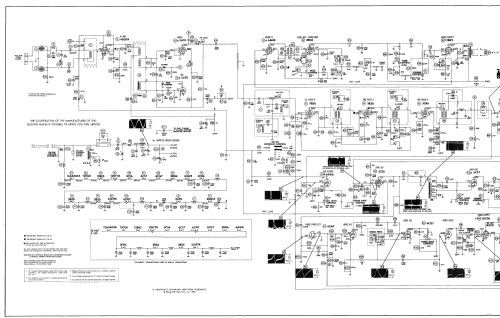

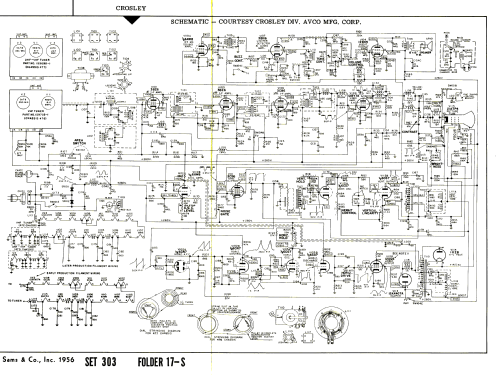

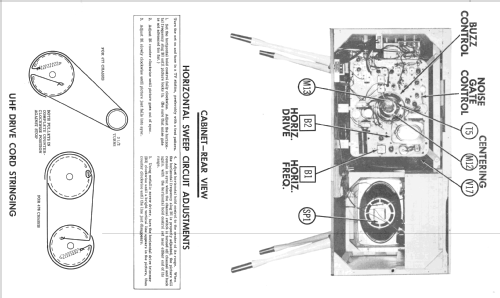

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 4BQ7A 5AT8 2AF4A 3BZ6 3BZ6 3CB6 12BY7A 6AW8 3BN6 12BK5 3CS6 6CS7 6CN7 6CG7 12DQ6 12AX4GTA 1X2A 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: J-21LPKMU Ch= 477 - Crosley Radio and Television

• Shape
• Console, Highboy (legs > 50 %).

• Notes

• CROSLEY model J-21LPKMU is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 477, VHF/ UHF tuner 159698-1 and picture tube 21ATP4.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 317 Folder 4 dated 5-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 303 Folder 17-S dated 1956)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
