DU-17PHN1 Ch= 359

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1952 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 130987

• Picture

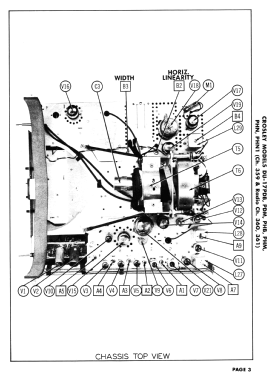

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• 6CB6 12AT7 or 12AV7 6AU6 6AU6 6AU6 6CB6 6AL5 6CB6 or 6AH6 6C4 6AU6 6AU6 6AL5 6AV6 6W6GT 6SL7GT 6BL7GT 6SN7GT 6CD6G 6W4GT 1B3GT 5U4G 6BE6 6BA6 6AV6 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117=110-120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: DU-17PHN1 Ch= 359 - Crosley Radio Corp.;

• Shape
• Console with any shape - in general

• Notes

• Crosley model DU-17PHN1 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a TV-AM phono combination receiver, chassis 359, Radio chassis 360, 361, VHF tuner AA-152132 and picture tube 17BP4A.

• Literature/Schematics (1)

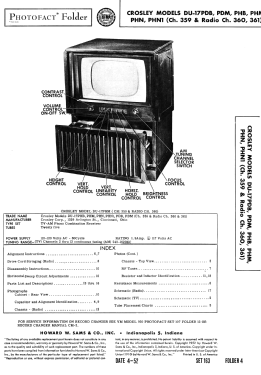

• Photofact Folder, Howard W. SAMS (4-1952 Set 163 Folder 4)
