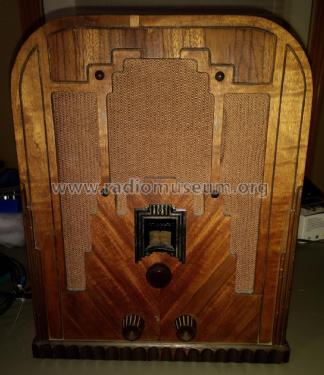

Dual Fiver Ch= 167 Tombstone - Early Production
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 261304
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Alternating Current supply (AC) / Either transformer: 60 cycles, 115V or 25-60 cycles, 115V or 50-60 cycles, 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dual Fiver Ch= 167 [Tombstone - Early Production] - Crosley Radio Corp.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 11.25 x 13.625 x 7.75 inch / 286 x 346 x 197 mm
- Notes
-
The Crosley Dual Fiver is an AC operated 5 tube BC and Police band receiver. This model is the early production model (Crosley calls the late production version "Series 2") and uses the 42 output tube along with other passive component differences. The component differences are noted in the Riders schematics (Page 4-10).
Model Output Tube Crosley Service Bulletin Dual Fiver (Early Production) 42 No. 67 Dual Fiver (Late Production) 2A5 No. 72 See also similar model: Dual Fiver Tombstone Battery Model.

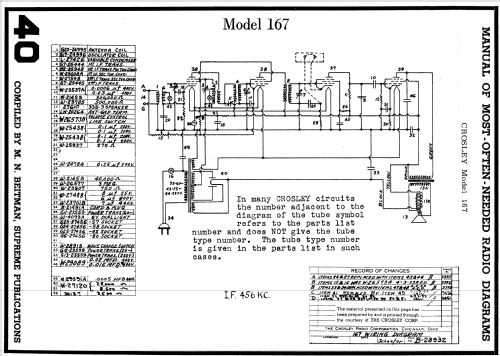

NOTE: The Schematics show the tube socket numbers, not the tube types!
- Price in first year of sale
- 26.00 $
- Circuit diagram reference

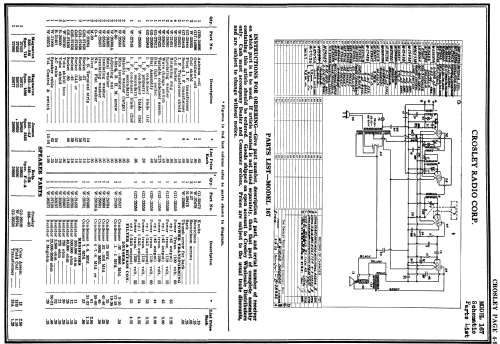

- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (Crosley Brochure - Season 1933/34)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 01, 1926-1938 (Page 40)
- Literature/Schematics (2)
- Spiegel Catalogs (Aircastle) (Spiegel 1934, page 181)
- Literature/Schematics (3)
- Crosley Radio Service Manual (Crosley Radio Service Manual 1943 and Earlier Page 203 and Crosley Service Bulletin No. 67)
- Literature/Schematics (4)
- Rider's Perpetual, Volume 4 = ca. 1934 and before (Riders 4-9, 4-10)
