E15CE Ch= 15-20E

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36497

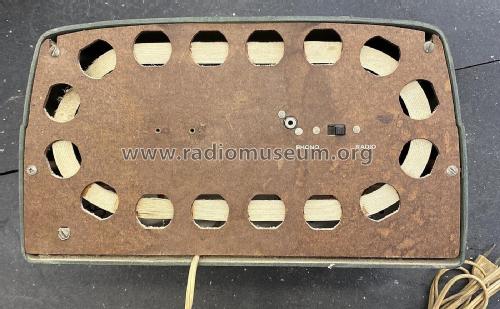

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm

• Power out
• 1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: E15CE Ch= 15-20E - Crosley Radio Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.9 x 7.25 x 7.25 inch / 328 x 184 x 184 mm

• Notes
• Color: Chartreuse, painted.

• Price in first year of sale
• 40.00 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Mentioned in
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-53, Set 201, Folder 3)

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 56.)
