• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36537

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1L6 1U4 1U5 3V4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Batteries (any type) / 117; AC;DC;90;9; Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.3 W (unknown quality)

• from Radiomuseum.org

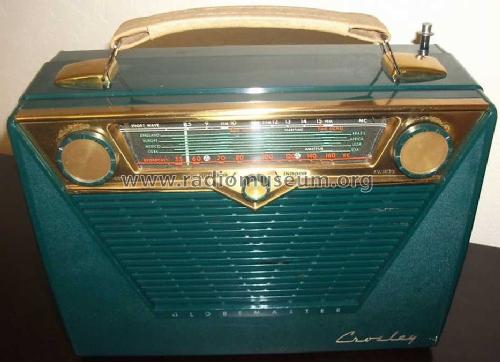

• Model: F-115GN Ch= 115F - Crosley Radio Corp.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Selenium Rectifier

• External source of data
• Ernst Erb

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 14, 1954

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954
