148 "Fiver" cathedral

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1932

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
36244

Schematics

148 'Fiver' ; Crosley Radio Corp.; (ID = 1609156) Radio — Crosley Radio Corp.; 148 'Fiver' (3)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1609157) Radio — Crosley Radio Corp.; 148 'Fiver' (3)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1609155) Radio — Crosley Radio Corp.; 148 'Fiver' (3)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1609154) Radio — Crosley Radio Corp.; 148 'Fiver' (3)

148 'Fiver' ; Crosley Radio Corp.; (ID = 141741) Radio — Crosley Radio Corp.; 148 'Fiver' (3)

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885232) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885233) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 150436) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 266615) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
By courtesy of William Kendrick, USA

148 'Fiver' ; Crosley Radio Corp.; (ID = 300552) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 300553) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 380465) Radio — Crosley Radio Corp.; 148 'Fiver' (2)

148 'Fiver' ; Crosley Radio Corp.; (ID = 551400) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 717113) Radio — Crosley Radio Corp.; 148 'Fiver' (2)

148 'Fiver' ; Crosley Radio Corp.; (ID = 728611) Radio — Crosley Radio Corp.; 148 'Fiver' (1)
Crosley 148 Fiver

148 'Fiver' ; Crosley Radio Corp.; (ID = 728612) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

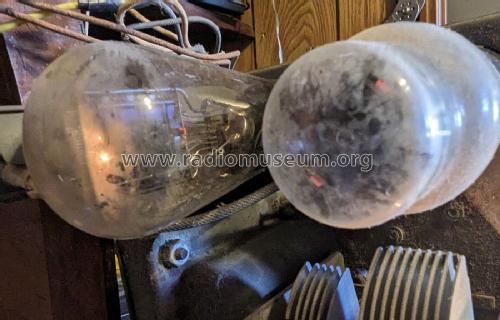

Crosley 148 particolare valvole

148 'Fiver' ; Crosley Radio Corp.; (ID = 1344487) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1344488) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1446835) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
By Courtesy Of EBAY User: aboauto

148 'Fiver' ; Crosley Radio Corp.; (ID = 1446836) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
By Courtesy Of EBAY User: aboauto

148 'Fiver' ; Crosley Radio Corp.; (ID = 1459138) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1459139) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1689972) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1689973) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1689974) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 1975438) Radio — Crosley Radio Corp.; 148 'Fiver' (1)

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885234) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885235) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885236) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885237) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885238) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885239) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885240) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885241) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

148 'Fiver' ; Crosley Radio Corp.; (ID = 2885242) Radio — Crosley Radio Corp.; 148 'Fiver' (2)
eBay item number:125807993485

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
58 58 57 42 or 2A5 80

Main principle
Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / Either transformer: 60 cycles, 117V or 25 cycles, 220 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Wooden case

from Radiomuseum.org
Model: 148 "Fiver" [cathedral] - Crosley Radio Corp.;

Shape
Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

Dimensions (WHD)
280 x 350 x 200 mm / 11 x 13.8 x 7.9 inch

Notes
The Crosley 148 "Fiver" is an AC operated, 5 tube BC band receiver.

Besides the standard Fiver (148) case there is a variant using similar cabinet as the 167. Only visible difference: the two knobs for the 148 instead of three knobs for the 167. Since the chassis of 148 and 167 are not interchangeable, the a.m. variant is definitely an original manufacturers model. See pictures. This radio model can not be earlier than 1932, because of some tubes used.

Price in first year of sale
19.00 $

External source of data
Ernst Erb

Source of data
Radio Collector`s Guide 1921-1932

Circuit diagram reference
Rider's Perpetual, Volume 3 = 1933 and before

Mentioned in
Machine Age to Jet Age II (Beitman Radio Diagrams 1926-1938 Page 37)

Literature/Schematics (1)
Collector's Guide to Antique Radios (7th Edition) (Riders (Crosley) 3-26)

Literature/Schematics (2)
Cathedral & Tombstone Radios (page 82.)

Literature/Schematics (3)
Crosley Radio Service Manual (Crosley Radio Service Manual 1943 and Earlier Page 193)

Literature/Schematics (4)
- - Manufacturers Literature (The Crosley Service Bulletin No. 43 Dated Dec. 1, 1932)
