• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 228791

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

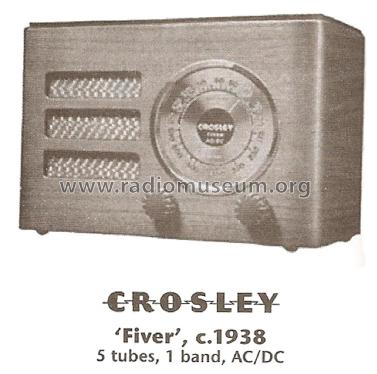

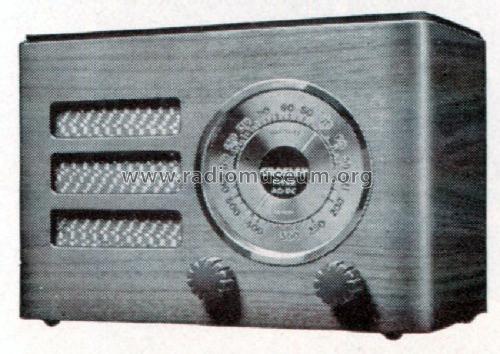

• Model: Fiver AC-DC - Crosley Radio Corp.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11 x 7.25 x 5.625 inch / 279 x 184 x 143 mm

• Notes

• The AC "Fiver" models have three knobs, this AC-DC Fiver has two knobs only.

• Literature/Schematics (2)
• Table Top Radios Vol. 4 Stein 2003 (page 72.)

• Literature/Schematics (3)

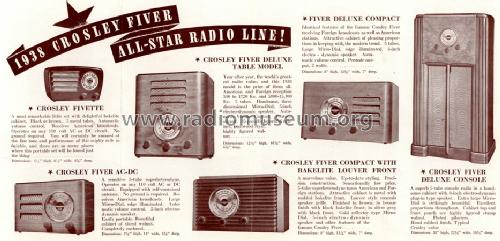

• Crosley Folder No. 1918, 1938 for Season 1937/38.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
