J-17TAMH Ch= 481

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1956 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
275633

Schematics

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 2199208) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 2199209) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915070) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915071) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915072) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915073) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915454) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915455) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915456) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915457) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915458) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915459) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915460) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915461) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915462) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915463) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915464) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915465) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 2940970) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (3)

J-17TAMH Ch= 481; Crosley Radio Corp.; (ID = 1915069) Television — Crosley Radio Corp.; J-17TAMH Ch= 481 (2)

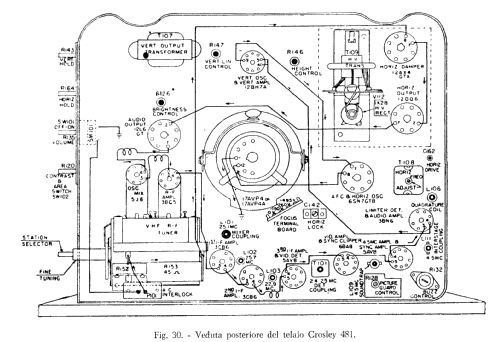

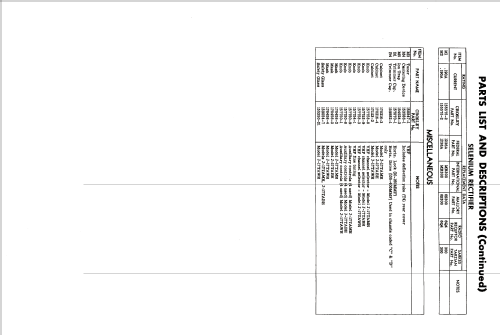

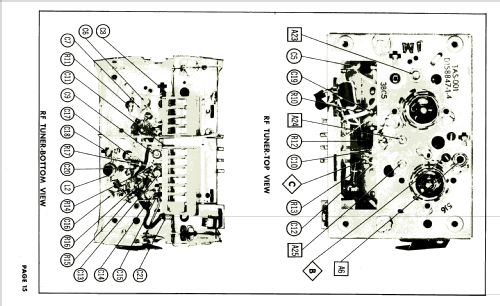

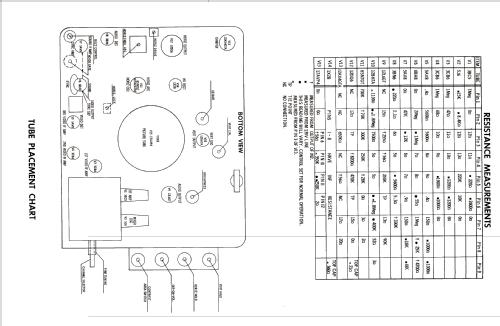

Picture from service manual.

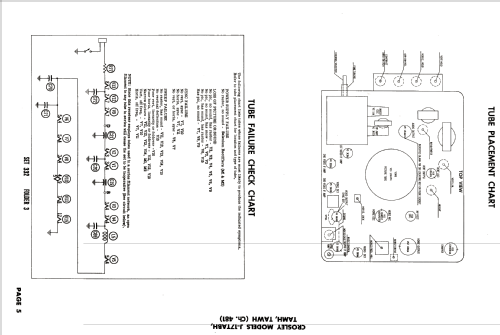

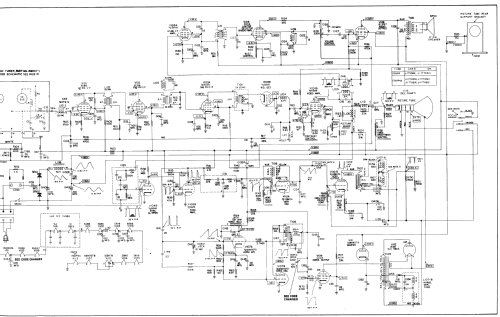

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
15

Valves / Tubes
3BC5 5J6 3CB6 3CB6 5AV8 6BA8 5AV8 3BN6 12L6GT 12BH7A 6SN7GT or 6SN7GTB 12DQ6 12AX4GTA 1X2B 17AVP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Material
Wooden case

from Radiomuseum.org
Model: J-17TAMH Ch= 481 - Crosley Radio Corp.;

Shape
Tablemodel, with any shape - general.

Notes
The CROSLEY model J-17TAMH is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 158847-1, chassis 481 and picture tube 17AVP4.
