J-21TABH Ch= 483

Crosley Radio Corp.; Cincinnati (OH)

Datos

Foro

Imágenes

Colecciones

País
United States of America (USA)

Fabricante / Marca
Crosley Radio Corp.; Cincinnati (OH)

Año
1956 ?

Categoría
Television Receiver (TV) or Monitor

Radiomuseum.org ID
279310

Imágenes
Esquemas

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 2224908) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963499) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963500) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

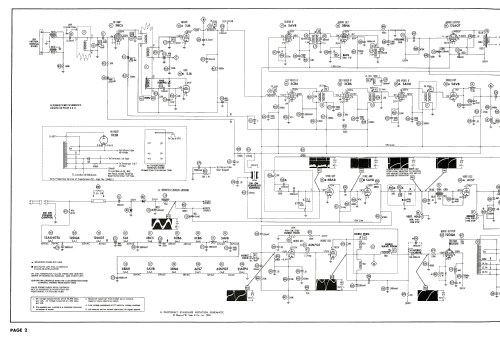

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963502) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963503) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963504) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

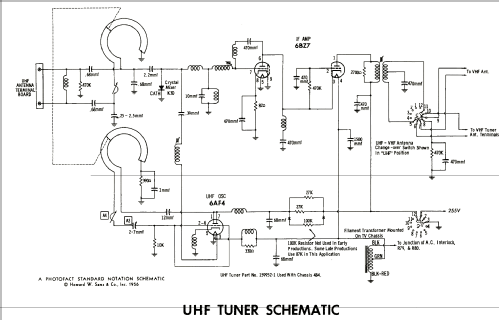

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963506) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963930) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963931) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

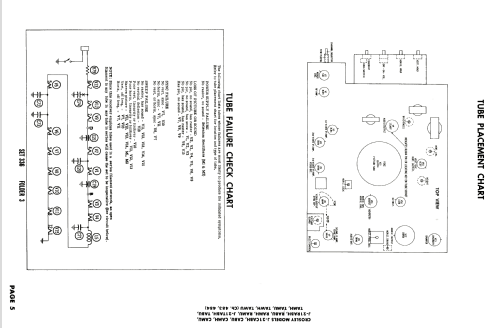

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963932) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963933) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963934) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963935) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963936) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963937) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

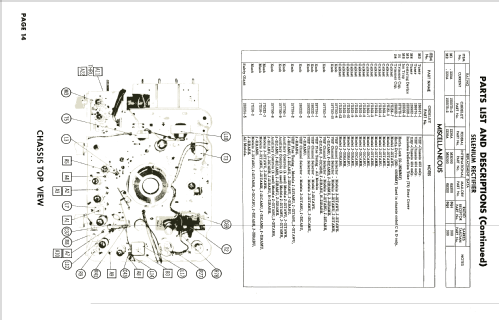

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963938) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963939) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (3)

J-21TABH Ch= 483; Crosley Radio Corp.; (ID = 1963498) Television — Crosley Radio Corp.; J-21TABH Ch= 483 (2)

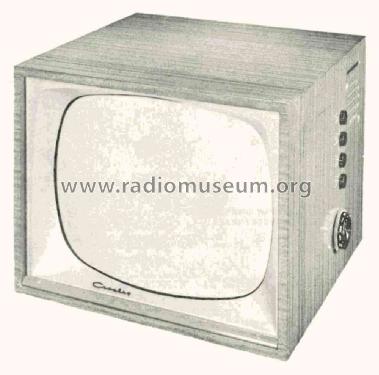

Picture from service manual.

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

Especificaciones técnicas

Numero de valvulas
15

Válvulas
3BC5 5J6 3CB6 3CB6 5AV8 6BA8 5AV8 3BN6 12L6GT 6CS7 6SN7GT or 6SN7GTB 12DQ6 12AX4GTA 1X2B 21ATP4

Principio principal
Superhet with RF-stage

Gama de ondas
VHF incl. FM and/or UHF (see notes for details)

Tensión de funcionamiento
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

Material
Wooden case

de Radiomuseum.org
Modelo: J-21TABH Ch= 483 - Crosley Radio Corp.;

Shape
Tablemodel, with any shape - general.

Anotaciones
The CROSLEY model J-21TABH is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 158847-1, chassis 483 and picture tube 21ATP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 336 Folder 3 dated 11-56)

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 317 Folder 16-S)

Autor
Modelo creado por Dirk Taekels. Ver en "Modificar Ficha" los participantes posteriores.
