• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68929

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

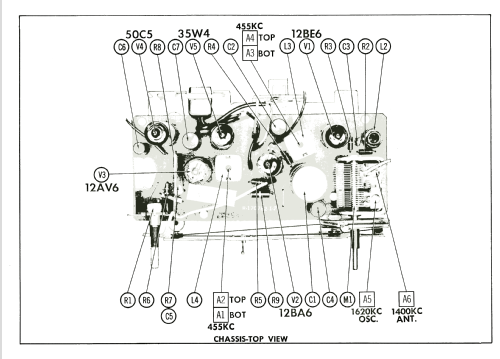

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: JC-8BK Ch= R104 - Crosley Radio Corp.;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 250 x 190 x 140 mm / 9.8 x 7.5 x 5.5 inch

• Notes

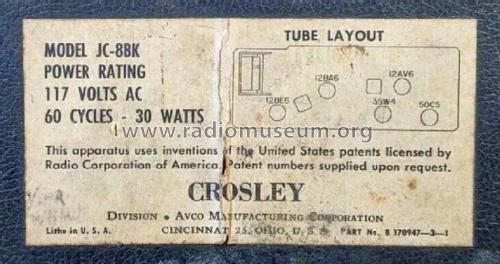

• 5 Tube Tabletop AM Clock Radio Model Crosley JC-8BK

  Power Consumption 117VAC 60Hz - 30 Watts


• External source of data
• V. Jeschkeit

• Mentioned in
• Beitman Radio Diagrams, Vol. 16, 1956 (page 26)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 340, Folder 5, December 1956)
