• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80265

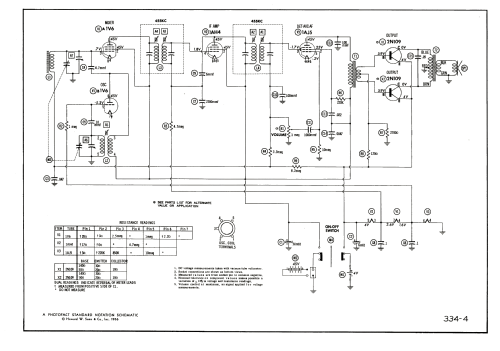

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1V6 1AH4 1AJ5

• Number of Transistors
• 2

• Semiconductors
• 2N109 2N109

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 3.75 & 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: JM8BK "Enchantment" Ch= R 102 - Crosley Radio Corp.;

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 4.4 x 7 x 1.9 inch / 112 x 178 x 48 mm

• Notes

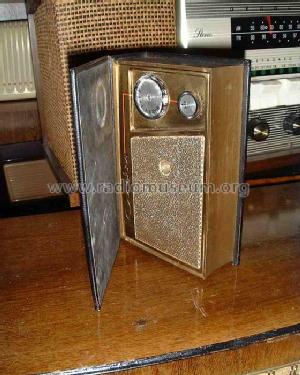

• Shaped like a book, black leather bound with gold leaf.
  Book is titled "ENCHANTMENT", author is CROSLEY.

• Price in first year of sale
• 50.00 $

• Source of data
• The Collector's Guide To Antique Radios 2. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)
• The M1 gallery of American Classics

• Literature/Schematics (2)

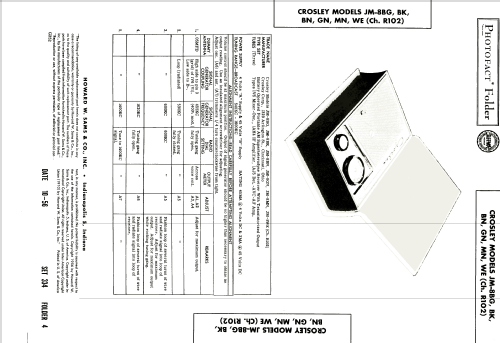

• Photofact Folder, Howard W. SAMS (Set 334 Folder 4 dated 10-56)

• Author
• Model page created by Steven Sostrom. See "Data change" for further contributors.
