JM-8GNA Ch= R-102-1
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 264254
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 3.75 & 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: JM-8GNA Ch= R-102-1 - Crosley Radio Corp.;
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 4.4 x 7 x 1.9 inch / 112 x 178 x 48 mm
- Notes
-

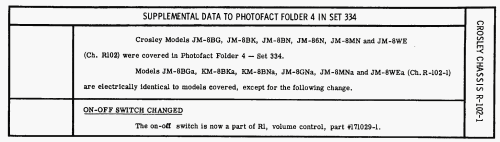

The Crosley model JM-8GNA Ch=R-102-1 is shaped like a book and is electrically identical to model Crosley JM-86N CH= 102, except for the on-off switch who is now a part of R1.This changes can be found in "Production Changes Bulletin 178" , Set 345 Folder 1 date 1-57.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 334 Folder 4)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
