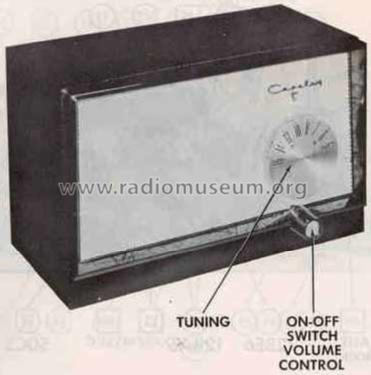

JT3GN Ch= R100
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81505

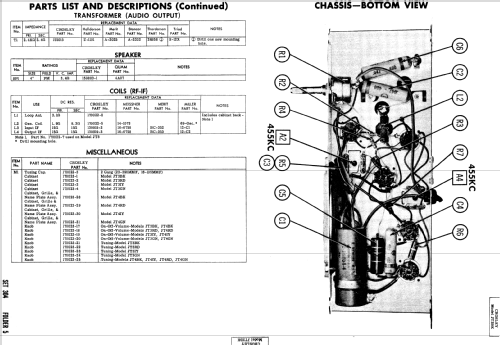

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: JT3GN Ch= R100 - Crosley Radio Corp.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- SAMS Photofact, date 1-56, set 304, folder 5 features the Crosley models JT3BK, JT3GN, JT3IY and JT3RD with Ch=R100 and also the models JT4BK, JT4GN, JT4IY and JT4RD with Ch=R101 as the same schematic. GN = color green.
- Source of data
- Beitman Radio Diagrams, Vol. 16, 1956
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 304 folder 5 date 1-56)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
