Junior Crystal Receiver

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1923 ?

Category
Detector-Radio (Crystal or diode, without tubes/transistors)

Radiomuseum.org ID
245318

Schematics

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292432) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292426) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292427) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292428) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292429) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292430) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292431) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

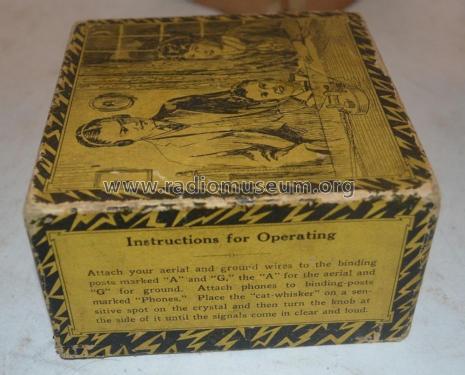

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292433) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292434) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292435) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 2292436) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)

Junior Crystal Receiver ; Crosley Radio Corp.; (ID = 1575120) Crystal — Crosley Radio Corp.; Junior Crystal Receiver (2)
Auction Photo from Estes Auctions.

Technical Specifications

Main principle
Crystal or Solid State Detector

Tuned circuits
1 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
No Power needed

Loudspeaker
- For headphones or amp.

Material
Bakelite case

from Radiomuseum.org
Model: Junior Crystal Receiver - Crosley Radio Corp.;

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
4.125 x 1 x 4.125 inch / 105 x 25 x 105 mm

Notes
Crosley Junior Crystal Radio Receiver. This set utilized the Wireless Specialty Crystal Detector.

Literature/Schematics (1)
Crystal Clear Volume 2 (Page 43)

Author
Model page created by Alan Larsen. See "Data change" for further contributors.
