• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36795

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

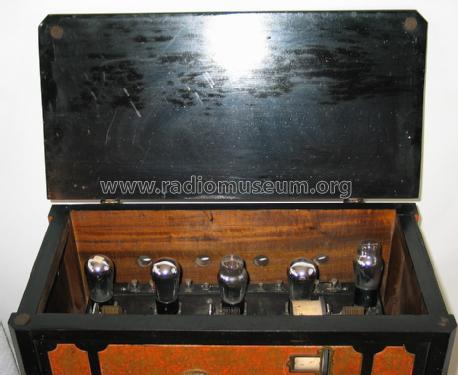

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A UX201A

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5-75 - Crosley Radio Corp.;

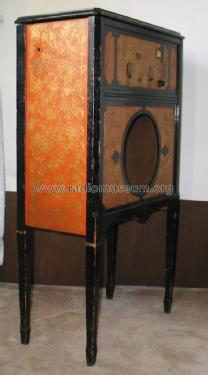

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 23.5 x 39.5 x 11.5 inch / 597 x 1003 x 292 mm

• Notes

• One dial (primary tuning control knob). The model 5-50 includes chassis and Musicone Speaker in two tone genuine walnut console. According to "1927 Crosley Radio Dealer Promo Advertising Poster", those models were offered (at least to dealers) with a price which reflects the second type number - here 5-50 for $ 50.

• Price in first year of sale
• 75.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition
