• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1923

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36648

• Number of Tubes
• 2

• Valves / Tubes
• WD11 WD11

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Portable VI - Crosley Radio Corp.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Two dials (primary tuning control knobs)

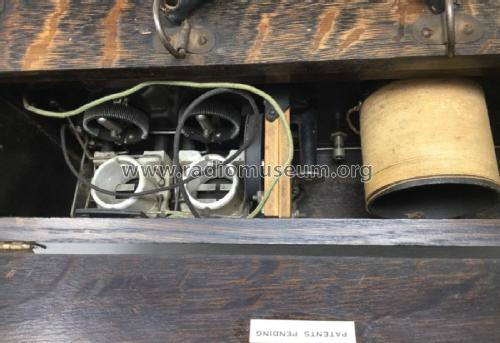

  Crosley Receiver Model VI Portable. A two tube set adapted to use 1 1/2 volt dry battery tubes and eliminate the storage battery. Consists of one stage of Tuned Radio Frequency Amplification and a Detector in oak cabinet.
  Model VI Portable..........$40.00
  Two "A" Batteries (1.5 V)....1.00
  "B" Battery (45V)............3.50
  Two Crosley Tube Adapters....1.20
  Two 1 1/2-volt Tubes........13.00
  Aerial ......................4.00
  Phones ......................6.00
  Total.........$68.70


• Price in first year of sale
• 40.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Literature/Schematics (4)
• Circa December 1922 Crosley Catalog page 10
