• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36597

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CX301A CX301A CX301A CX301A CX301A CX301A

• Main principle
• Special principle (see notes); 3 AF stage(s); Neutrodyne

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 6 & 45 & 90 & ? Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org

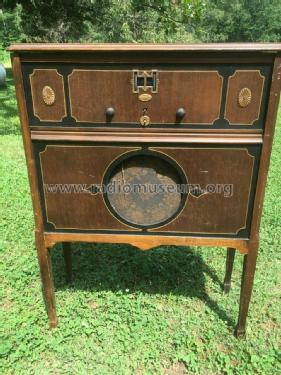

• Model: RFL-90 - Crosley Radio Corp.;

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 41 x 30.5 x 12 inch / 1041 x 775 x 305 mm

• Notes

• A folder from 1927 reads: "Like the RFL90 this five-tube RFL75 radio incorporates the famous non-oscillating and non-radiating RFL circuit. Perfect balancing is achieved by introducing the Wheatsone bridge into each stage of amplification. ... A genuine Crosley Musicone is built in and plenty of space is provided for batteries or power equipment. ... Conole is mahogany." The price for the RFL90 has risen to $ 98. From Crosley folder for resellers, 1927.

  Grid bias "C" voltage unknown.

• Price in first year of sale
• 90.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition
