• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 351835

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6CB6 12AT7 or 6J6 6AU6 6AU6 6AU6 or 6AG5 or 6BC5 6AG5 or 6BC5 6AL5 6CB6 or 6AH6 6SN7GT 6BC5 or 6CB6 or 6AG5 6AU6 6AL5 6AV6 6V6GT 6SL7GT 6C4 6V6GT 6SN7GT 6CD6G 6W4GT 1B3GT 5U4G 5U4G 16TP4 or 17BP4 or 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.12 inch = 13 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: S11-459MU Ch= 321-4 - Crosley Radio Corp.;

• Shape
• Tablemodel, with any shape - general.

• Notes

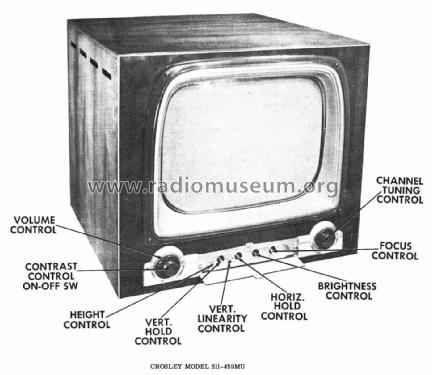

• Crosley model S11-459MU is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 321-4, VHF tuner AW-149159 and picture tube 16TP4 or 17BP4 or 17BP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 152, folder 3, dated 12-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
