Septet cathedral 158

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1932 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
36257

Schematics

Septet cathedral 158; Crosley Radio Corp.; (ID = 589645) Radio — Crosley Radio Corp.; Septet cathedral 158 (3)

Septet cathedral 158; Crosley Radio Corp.; (ID = 245857) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 245859) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 245861) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 245858) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

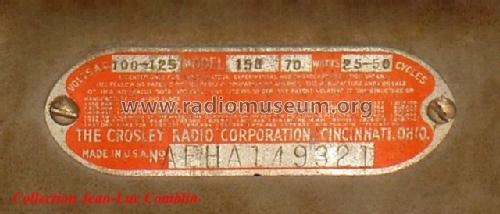

Septet cathedral 158; Crosley Radio Corp.; (ID = 245862) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 699730) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
Thanks to ebayer larry21751

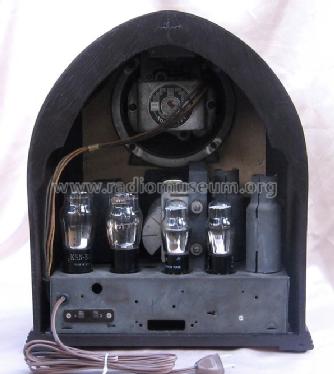

Septet cathedral 158; Crosley Radio Corp.; (ID = 699731) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
Thanks to ebayer larry21751

Septet cathedral 158; Crosley Radio Corp.; (ID = 1205670) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1205671) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1205672) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1205673) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1205674) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1300575) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1300576) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1300577) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1300578) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1300579) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1300580) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 1360115) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 2179634) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

Septet cathedral 158; Crosley Radio Corp.; (ID = 2179640) Radio — Crosley Radio Corp.; Septet cathedral 158 (1)

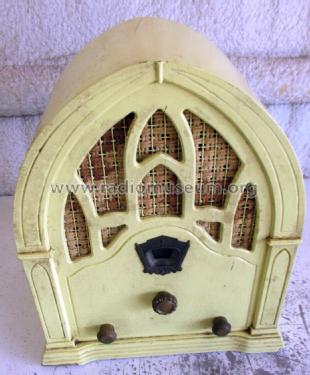

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883806) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883807) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883808) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883810) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883811) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883812) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883813) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883814) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Septet cathedral 158; Crosley Radio Corp.; (ID = 2883815) Radio — Crosley Radio Corp.; Septet cathedral 158 (2)
eBay item number:144948634540

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
58 57 58 56 56 42 80

Main principle
Superhet with RF-stage; ZF/IF 181 kHz

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 117 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Wooden case

from Radiomuseum.org
Model: Septet cathedral 158 - Crosley Radio Corp.;

Shape
Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

Dimensions (WHD)
345 x 400 x 220 mm / 13.6 x 15.7 x 8.7 inch

Net weight (2.2 lb = 1 kg)
7.7 kg / 16 lb 15.4 oz (16.96 lb)

Price in first year of sale
29.00 $

External source of data
Ernst Erb

Source of data
Radio Collector`s Guide 1921-1932

Circuit diagram reference
Rider's Perpetual, Volume 3 = 1933 and before
