Sixty-One Ch= 6H2 table 1

Crosley Radio Corp.; Cincinnati (OH)

Data
Forum
Pictures
Collections

  • Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 36607

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

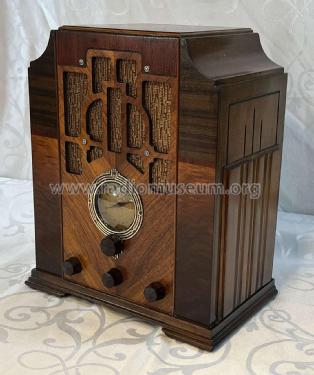

  • Model: Sixty-One Ch= 6H2 [table 1] - Crosley Radio Corp.;
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 14 x 16 x 9 inch / 356 x 406 x 229 mm
  • Notes
  • The Crosley Service manual defines the "6H2" as a chassis used in the "Sixty-One A.F." models. The Crosley 6H2 chassis can be found in different cabinet versions. Bunis vol. 4 page 55 shows it as tombstone for 1933 (without any other name) and Stein Pre War Consoles brings the model as console for 1935 on page 52. Beitman and Rider show the same schematic for "model" 6H2 but Rider calls it Sixty-One (6H2) and Sixty-One LB (indicating low boy?) - but we show (also) a floor model (no legs but feet, stubs) and also a different table model. Available with 110V/60Hz, 110V/25Hz or 220V/25Hz power transformer.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 5 = ca. 1934 and before
