• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74618

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6U7G 6Q7G 6K6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Power out
• 3.25 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

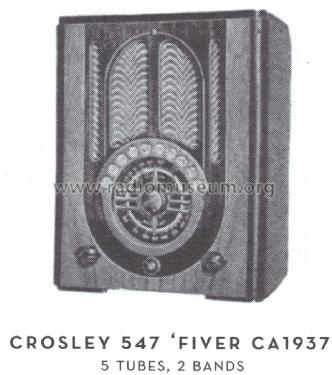

• Model: Teletune Fiver 547, Cabinet 6KA [early] - Crosley Radio Corp.;

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 10.375 x 12.5 x 6.75 inch / 264 x 318 x 171 mm

• Notes

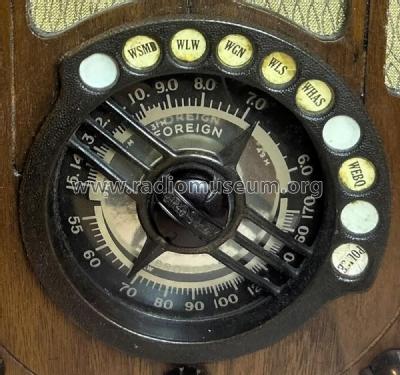

• The Crosley Teletune Fiver 547, Cabinet 6KA (early) is part of a family of Crosley 517, 547, and 5517 radios. This model has the "Teletune" escutcheon with telephone-like tuning. The model without Teletune is the Crosley Fiver 517, Cabinet 6K, 6KA (early).

  See the Crosley Fiver 517, Cabinet 6K, 6KA (early) for details of this family.

• Price in first year of sale
• 24.95 USD

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Cathedral & Tombstone Radios (page 84.)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
