526TVLCD (5TV526R)

Crown Radio Corp.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1978
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 129070
    • alternative name: Asahi Radio Mfg. Co., Ltd

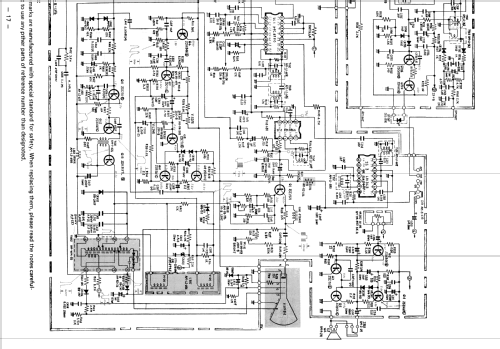

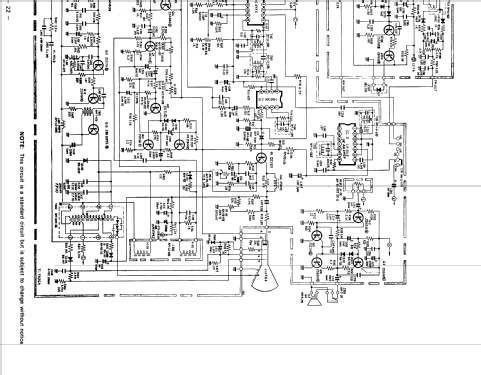

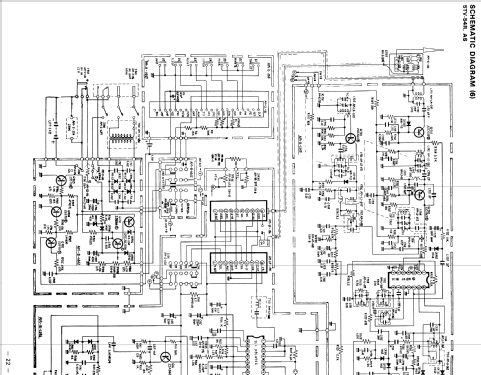

Click on the schematic thumbnail to request the schematic as a free document.

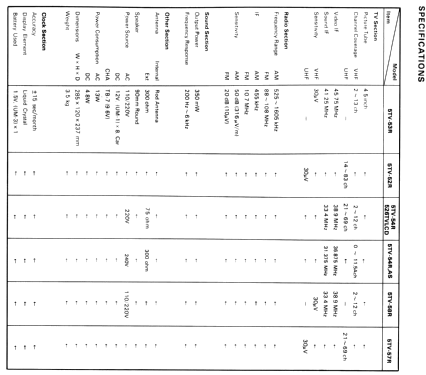

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • 17
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage

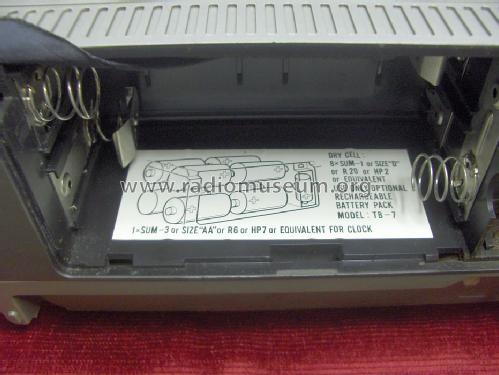

  • Line / Batteries (any type) / 220; 12; 8 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 526TVLCD - Crown Radio Corp.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 295 x 118 x 245 mm / 11.6 x 4.6 x 9.6 inch
  • Notes
  • 11cm b/w TV with CCIR B/G VHF & UHF tuner, FM & AM broadcast band, LCD clock with alarm function, earphone jack, gold-metallic finish, 12V car battery operation, IC equipped.
  • Net weight (2.2 lb = 1 kg)
  • 3.3 kg / 7 lb 4.3 oz (7.269 lb)
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (4)
  • Trader Service Sheet 1978
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
