• Country
• Japan

• Manufacturer / Brand
• Crown Radio Corp.; Tokyo

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 237216

• • alternative name: Asahi Radio Mfg. Co., Ltd

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 3,75 / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

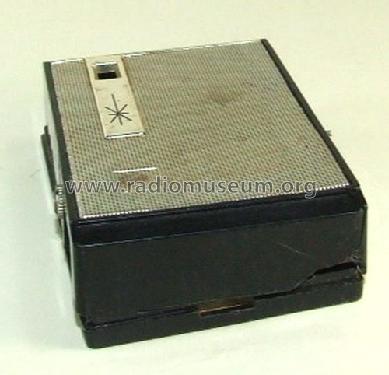

• Model: 7-Transistor Rechargeable Radio TR-770R - Crown Radio Corp.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.5 x 4 x 1 inch / 64 x 102 x 25 mm

• Notes

• Crown 7 Transistor Rechargeable AM Radio Model TR-770R.
  Tuning Range: 535 - 1605 kHz.
  Battery 3,75V Crown Ni-Cd Battery Type B-3.
  Made in Japan.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
