CTR-550
Crown Radio Corp.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Crown Radio Corp.; Tokyo
- Year
- 1962 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 158329
-
- alternative name: Asahi Radio Mfg. Co., Ltd
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Audio-Amplification
- Details
- Tape Recorder
- Power type and voltage
- 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.25 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

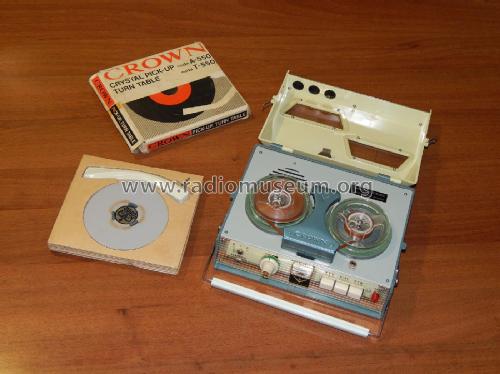

- Model: CTR-550 - Crown Radio Corp.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 235 x 85 x 180 mm / 9.3 x 3.3 x 7.1 inch
- Notes
- kleiner Tape Recorder (tragbar), Spulendurchmesser max. 8,5cm, Eingänge: Mikrofon/ Line/ Telefonadapter über Klinkenbuchse 3,5mm, Kombi-Zeigerinstrument zur Anzeige Level/Batterie, Kopfhöreranschluß über 3,5mm Klinkenbuchse, Anschluß eines ext Netzgerätes 4,5Volt/DC Gehäusedeckel abnehmbar
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
