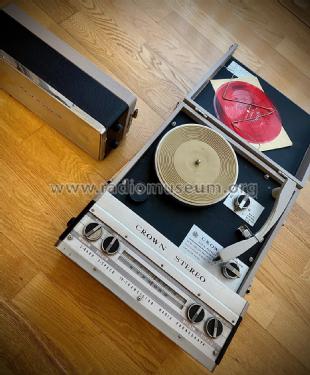

Portable Radio-Phono STP-44

Crown Radio Corp.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1963 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 351933
    • alternative name: Asahi Radio Mfg. Co., Ltd

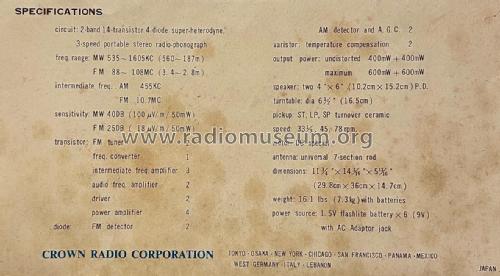

 Technical Specifications

  • Number of Transistors
  • 14
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Batteries / addl. power jack / D: 6 x 1.5 / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.8 W (1.2 W max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Portable Radio-Phono STP-44 - Crown Radio Corp.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 298 x 147 x 360 mm / 11.7 x 5.8 x 14.2 inch
  • Notes

  • Speaker: 4" x 6"

    Speed:  33 1/2, 45 & 78 rpm

    Ceramic needle

  • Net weight (2.2 lb = 1 kg)
  • 7.3 kg / 16 lb 1.3 oz (16.079 lb)
