Portable Stereo Radio Phonograph SPH-200
Crown Radio Corp.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Crown Radio Corp.; Tokyo
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232836
-
- alternative name: Asahi Radio Mfg. Co., Ltd
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Batteries / addl. power jack / 6 x 1.5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Portable Stereo Radio Phonograph SPH-200 - Crown Radio Corp.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 22 x 16.5 x 13.75 inch / 559 x 419 x 349 mm
- Notes
-

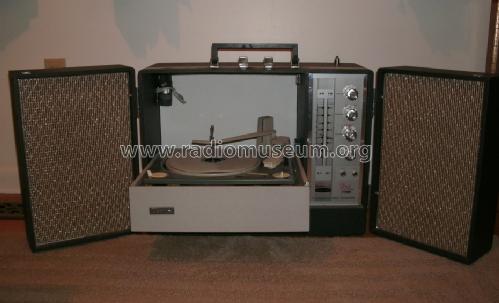

Crown SPH-200, 16 Transistor 2-Band Portablel Stereo Radio-Phonograph;
hinged 33, 45 & 78 rpm 3-speed disc record player, volume control & left & right Balance , suitable AC adaptor type AD-5000S.With the speakers removed the unit is only 9" deep.
Is NOT a vertical player. Records are played in horizontal position. For transport the player is in vertical position, but inactive.
- Author
- Model page created by Mark Skala. See "Data change" for further contributors.
