• Country
• Japan

• Manufacturer / Brand
• Crown Radio Corp.; Tokyo

• Year
• 1969 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 358115

• • alternative name: Asahi Radio Mfg. Co., Ltd

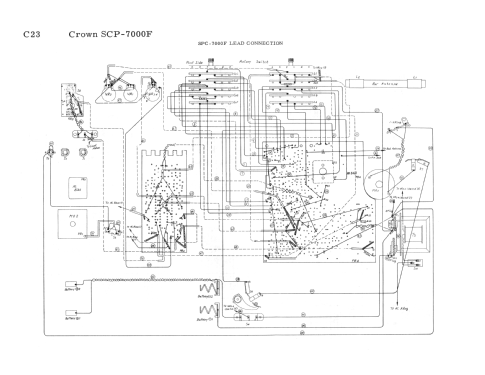

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors
• 2SC535 2SC461 2SC460 2SC460 2SC460 2SC460 2SC460 2SC458 2SC458 2SB75 2SB75 2SB156 2SB156 2SB156 2SB156 2SC458 2SC458 2SC458 2SC458 2SB77 1N60 1N60 1N34A 1N60 1N34A

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player + Cassette Recorder

• Power type and voltage
• Line / Batteries (any type) / 50-60 Hz, 117; 220 / D: 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Solid State Stereo SCP-7000F - Crown Radio Corp.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 18.125 x 5.625 x 13.375 inch / 460 x 143 x 340 mm

• Notes

• 3-speed stereo phonograph/cassette recorder/MW-SW-FM radio in an attaché/brief style case.

  Frequency range:
  MW 520~1605 kHz
  SW 6~18 MHz
  FM 87~108 MHz

• Net weight (2.2 lb = 1 kg)
• 15.4 kg / 33 lb 14.7 oz (33.921 lb)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
