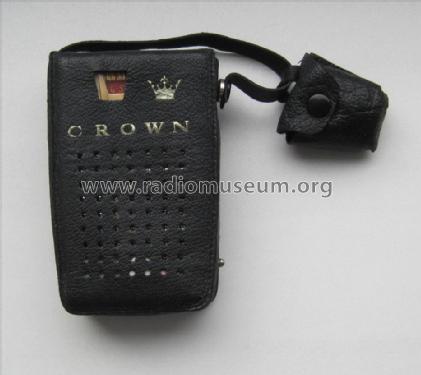

5 Transistor TR-555
Crown Radio Corp.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Crown Radio Corp.; Tokyo
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139772
-
- alternative name: Asahi Radio Mfg. Co., Ltd

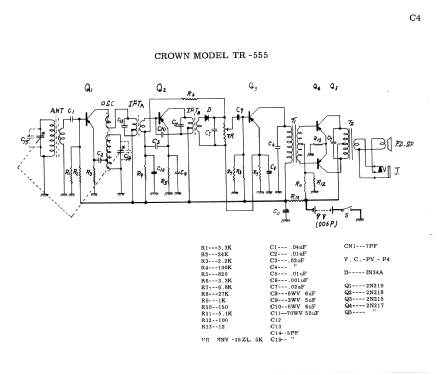

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5 Transistor TR-555 - Crown Radio Corp.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Imported by Shriro.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 504 folder 11 date 10-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
