• Country
• Japan

• Manufacturer / Brand
• Crown Radio Corp.; Tokyo

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107388

• • alternative name: Asahi Radio Mfg. Co., Ltd

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N411 2N409 2N409 2N405 2N407 2N407 SD46

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

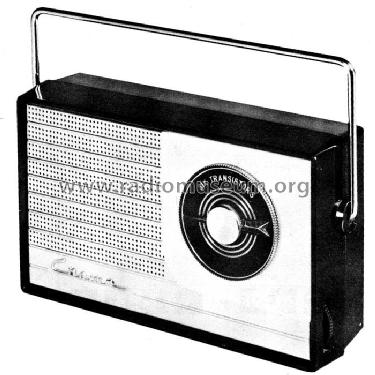

• Model: Super Six TR-610 - Crown Radio Corp.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

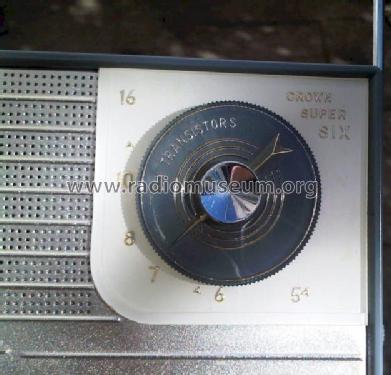

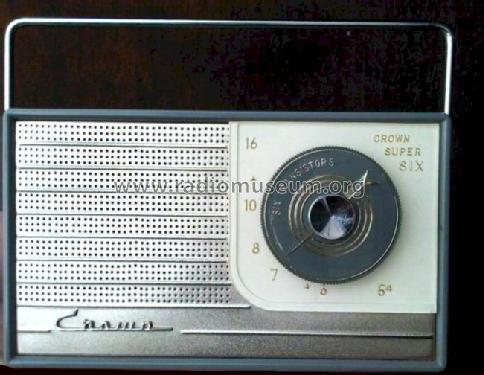

• Crown Super Six - Six Transistor TR-610;
  Earphone jack, carrying handle/stand.

  See also a later and complete different Crown model which shares the same designation TR-610.

  Imported by Shriro.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 457, Folder 7, 9-59)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
