6 Transistor TR-666

Crown Radio Corp.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Crown Radio Corp.; Tokyo

Year
1959 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
103529

- alternative name: Asahi Radio Mfg. Co., Ltd

Schematics

6 Transistor TR-666; Crown Radio Corp.; (ID = 257839) Radio — Crown Radio Corp.; 6 Transistor TR-666 (3)

6 Transistor TR-666; Crown Radio Corp.; (ID = 593428) Radio — Crown Radio Corp.; 6 Transistor TR-666 (3)

6 Transistor TR-666; Crown Radio Corp.; (ID = 593429) Radio — Crown Radio Corp.; 6 Transistor TR-666 (3)

6 Transistor TR-666; Crown Radio Corp.; (ID = 593430) Radio — Crown Radio Corp.; 6 Transistor TR-666 (3)

6 Transistor TR-666; Crown Radio Corp.; (ID = 593431) Radio — Crown Radio Corp.; 6 Transistor TR-666 (3)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2644224) Radio — Crown Radio Corp.; 6 Transistor TR-666 (1)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2644229) Radio — Crown Radio Corp.; 6 Transistor TR-666 (1)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2644228) Radio — Crown Radio Corp.; 6 Transistor TR-666 (1)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2644230) Radio — Crown Radio Corp.; 6 Transistor TR-666 (1)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2644226) Radio — Crown Radio Corp.; 6 Transistor TR-666 (1)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2644227) Radio — Crown Radio Corp.; 6 Transistor TR-666 (1)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2644231) Radio — Crown Radio Corp.; 6 Transistor TR-666 (1)

6 Transistor TR-666; Crown Radio Corp.; (ID = 2225182) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
ebay.com #222754932787 seller acremeans11

6 Transistor TR-666; Crown Radio Corp.; (ID = 258303) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)

6 Transistor TR-666; Crown Radio Corp.; (ID = 374185) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
Q = ebay objnr : 330173584325

6 Transistor TR-666; Crown Radio Corp.; (ID = 374186) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
Q = ebay objnr : 330173584325

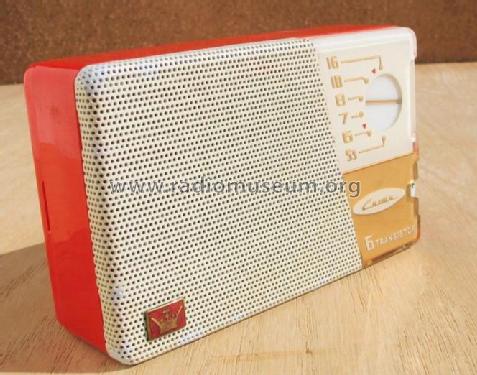

6 Transistor TR-666; Crown Radio Corp.; (ID = 374187) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
Q = ebay objnr : 330173584325

6 Transistor TR-666; Crown Radio Corp.; (ID = 374188) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
Q = ebay objnr : 330173584325

6 Transistor TR-666; Crown Radio Corp.; (ID = 374189) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
Q = ebay objnr : 330173584325

6 Transistor TR-666; Crown Radio Corp.; (ID = 2224969) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
ebay.com #323006498860 seller knoxfinds

6 Transistor TR-666; Crown Radio Corp.; (ID = 593432) Radio — Crown Radio Corp.; 6 Transistor TR-666 (2)
Sams Photofact Folders

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
6

Semiconductors
HJ-23D HJ-22D HJ-22D HJ15 HJ-17D

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 6 Transistor TR-666 - Crown Radio Corp.; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
106 x 66 x 32 mm / 4.2 x 2.6 x 1.3 inch

Notes
Frequency range: AM 535 - 1605 kc.

Distrubuted in the USA by Shriro Corporation.

US Civil Defense marks on station dial.

Mentioned in
-- Schematic

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Date 10-59, Set 459, Folder 4)

Literature/Schematics (2)
Photofact TSM Transistor Radio Series SAMS ((TSM-6 July,1960))
