8 Transistors TR-800

Crown Radio Corp.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Crown Radio Corp.; Tokyo

Year
1958

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
103528

- alternative name: Asahi Radio Mfg. Co., Ltd

Schematics

8 Transistors TR-800; Crown Radio Corp.; (ID = 578163) Radio — Crown Radio Corp.; 8 Transistors TR-800 (3)

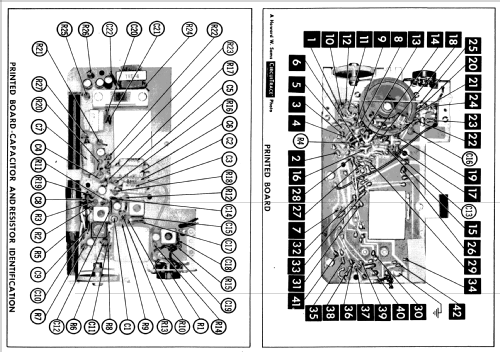

8 Transistors TR-800; Crown Radio Corp.; (ID = 578164) Radio — Crown Radio Corp.; 8 Transistors TR-800 (3)

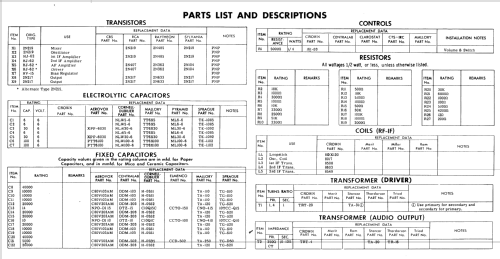

8 Transistors TR-800; Crown Radio Corp.; (ID = 578165) Radio — Crown Radio Corp.; 8 Transistors TR-800 (3)
