• Country
• Japan

• Manufacturer / Brand
• Crown Radio Corp.; Tokyo

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107396

• • alternative name: Asahi Radio Mfg. Co., Ltd

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA235 2SA234 2SA234 2SA234 2SA234 2SB75 2SB75 2SB77 2SB77

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / AA: 4 x 1,5V or NiCd: 1 x 6.25 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Power out
• 0.35 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

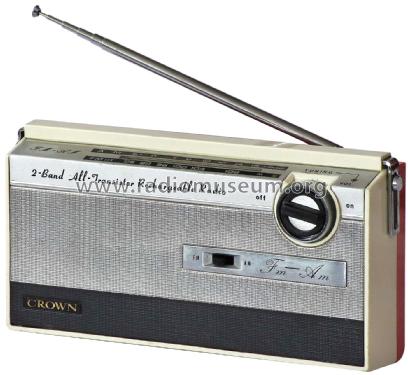

• Model: 2-Band All-Transistor Rechargeable Radio FM-AM TRF-1500R - Crown Radio Corp.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 134 x 50 mm / 8.7 x 5.3 x 2 inch

• Notes

• Als Zubehör gab es für dieses Gerät einen NC-Akku. Das Batteriefach wurde dann entfernt und an diese Stelle kam der Akku. Eine Steckverbindung machte das Wechseln leicht.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
