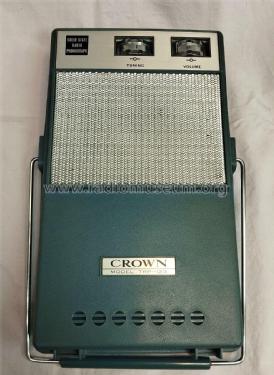

Solid State Radio Phonograph TRP-123
Crown Radio Corp.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Crown Radio Corp.; Tokyo
- Year
- 1962–1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 185095
-
- alternative name: Asahi Radio Mfg. Co., Ltd
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Batteries / addl. power jack / UM-1: 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 0.4 inch = 1 cm
- Power out
- 0.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Solid State Radio Phonograph TRP-123 - Crown Radio Corp.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 6.437 x 2.312 x 0 inch / 163 x 59 x 0 mm
- Notes
- Crown TRP-123 MW-Band 2-speed 7 Transistor Portable Radio Phonograph with ac adaptor socket for external ac-adaptor use.
- Net weight (2.2 lb = 1 kg)
- 2.4 lb (2 lb 6.4 oz) / 1.090 kg
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
